360° Rotatable Polarized Light Microscope Bionocular For Laboratory Research

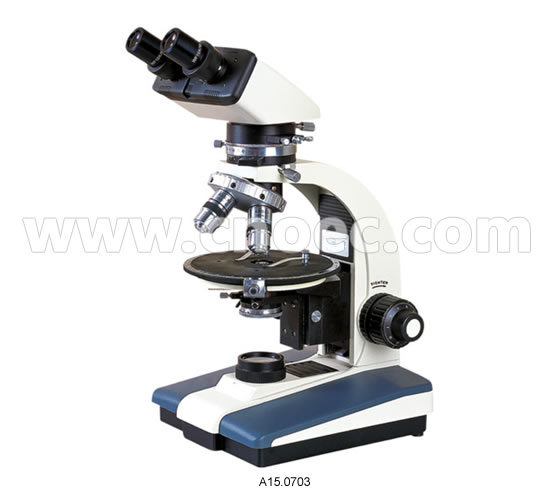

A15.0703 Polarizing Microscope

A

B

C

Head

Monocular

●

Sliding Brinocular Viewing Head, Inclined at 30°

●

Sliding Trinocular Viewing Head, Inclined at 30°

●

Eyepiece

Eyepiece WF10×/18 with scale of cross hair

●

●

●

Eyepiece WF10×/18 with graticule

●

●

●

WF10x/18

●

●

●

Objective

Strain Free Achomatic Objective 4x,10x,25x,40x, 63x

●

●

●

Nosepiece

Backward quadruple nosepiece, Center adjustable

●

●

●

Focusing

Coaxial coarse & fine adjustment, Range 28mm,Fine division 0.002mm

●

●

●

Stage

Revolving Round Stage Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale

●

●

●

Mechanical stage, Moving rang 30X40mm

●

●

●

Analyzer

Rotatable analyzer with gradation 0°-90°

●

●

●

Polarizer

360° Rotatable

●

●

●

Bertrand Lens

Bertrand Lens,sliding in/out of optical path

●

●

●

Optical Compensator

λ Slip(First class red), 1/ 4λ Slip, Quartz wedge

●

●

●

Condenser

NA1.25 Abbe condenser with Iris diaphragm & filter

●

●

●

Illumination

12V/20W Halogen lamp, Brightness adjustable(Transmitted illumination)

●

●

●

Micrometer

●

●

●

Filter

Blue

●

●

●

Optional Accessories

Item No.

Objective

Lamp house ajustment objective

Specimen presser
